What Is the Best Way to Insulate a Metal Building?
The best way to insulate a metal building is to install insulation on the roof and walls using fiberglass, spray foam, rigid board, or radiant barriers, combined with a proper vapor barrier to control moisture and temperature.
This approach reduces heat transfer, prevents condensation, and improves energy efficiency across all climates.

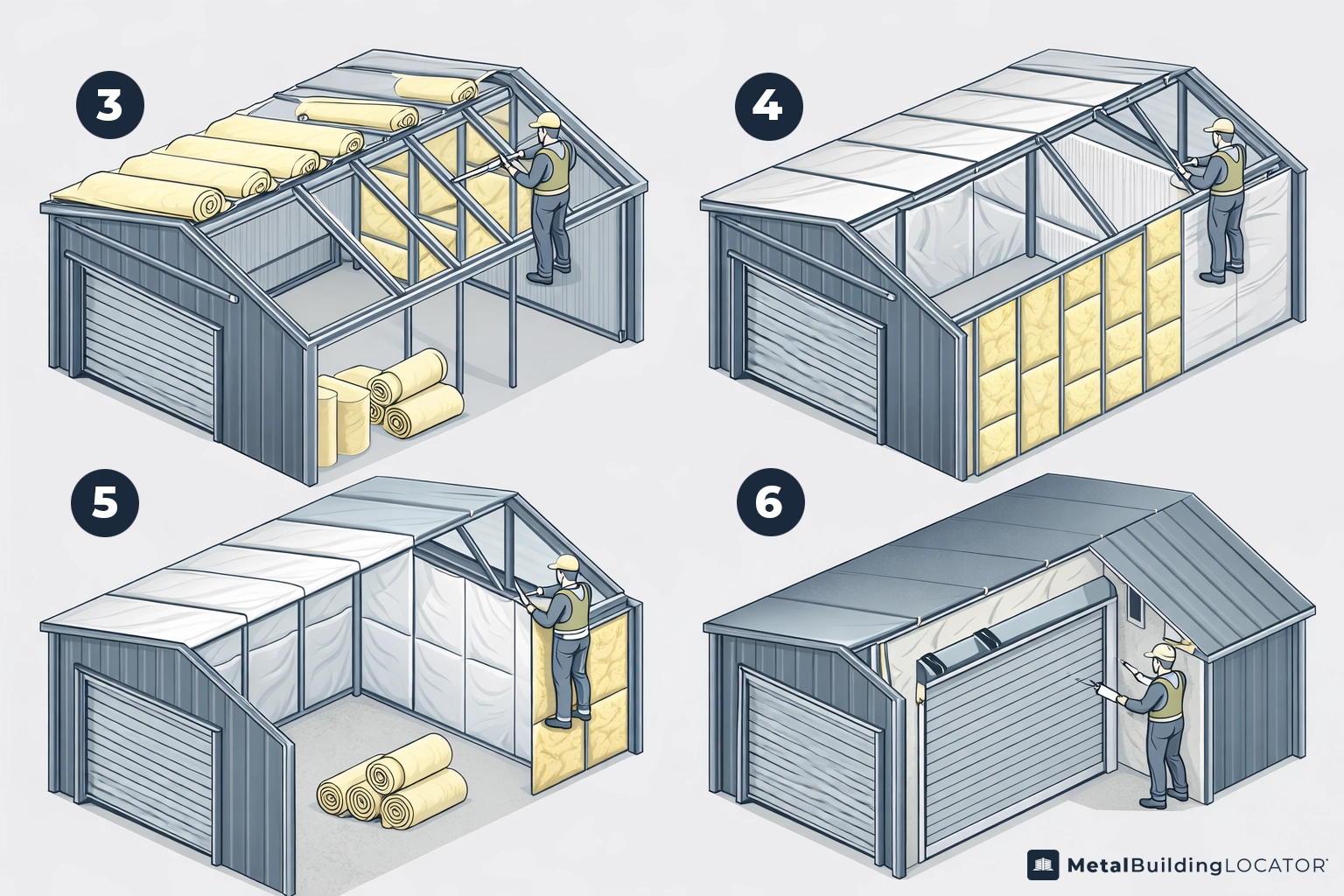

How to Insulate a Metal Building (Step-by-Step)
- 1. Determine how the building will be used (heated, cooled, storage, or mixed use).
- 2. Select the insulation type based on climate, budget, and performance needs.
- 3. Insulate the roof first to minimize heat gain and loss.
- 4. Install wall insulation, sealing gaps around framing and panels.
- 5. Add a vapor barrier to stop condensation from forming on metal surfaces.
- 6. Seal doors, windows, and penetrations to prevent air leakage.
This step-by-step method ensures consistent thermal performance and moisture control.
Why Insulating a Metal Building Matters
Metal buildings are durable but highly conductive. Without insulation, they are prone to extreme temperature swings and condensation buildup.
Insulation helps:
- Control interior temperatures year-round
- Prevent moisture damage and corrosion
- Lower heating and cooling costs
- Protect vehicles, tools, and equipment
- Improve comfort and usability
Whether residential, agricultural, or commercial, insulation protects your investment.

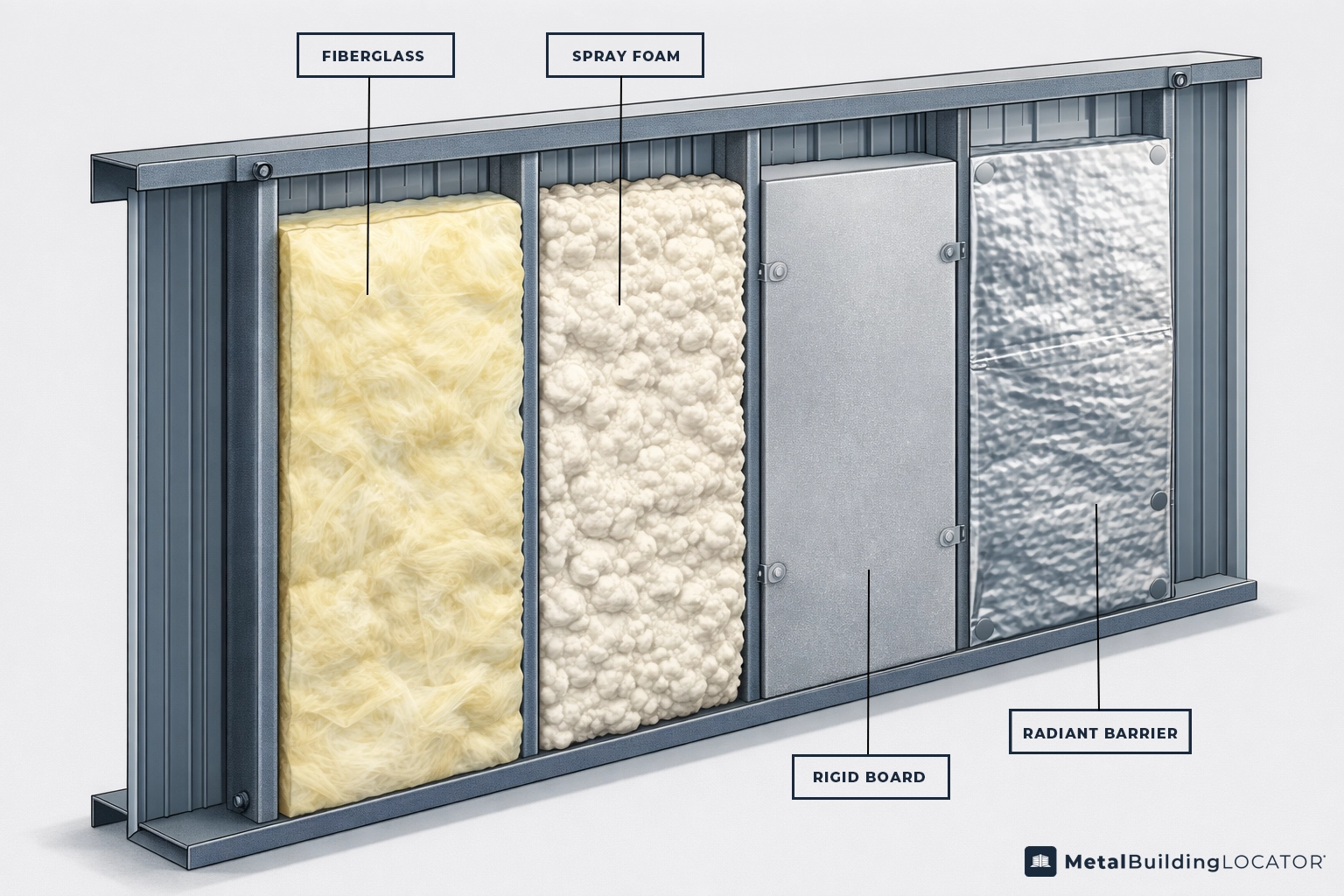

Metal Building Insulation Types Compared
Each insulation type serves a specific purpose, and many buildings benefit from a hybrid approach.
Insulation Type | Best For | R-Value | Moisture Control |
|---|---|---|---|
Fiberglass | Budget builds | Moderate | Needs vapor barrier |
Spray Foam | Climate-controlled buildings | High | Excellent |
Rigid Board | Finished interiors | High | Very good |
Radiant Barrier | Hot climates | Reflective | Limited alone |
Fiberglass Insulation for Metal Buildings
Fiberglass insulation is one of the most widely used options due to affordability and ease of installation.
It is typically installed between wall girts and roof purlins with a vapor barrier facing the interior. When properly sealed, fiberglass provides reliable thermal performance for garages, barns, and warehouses.

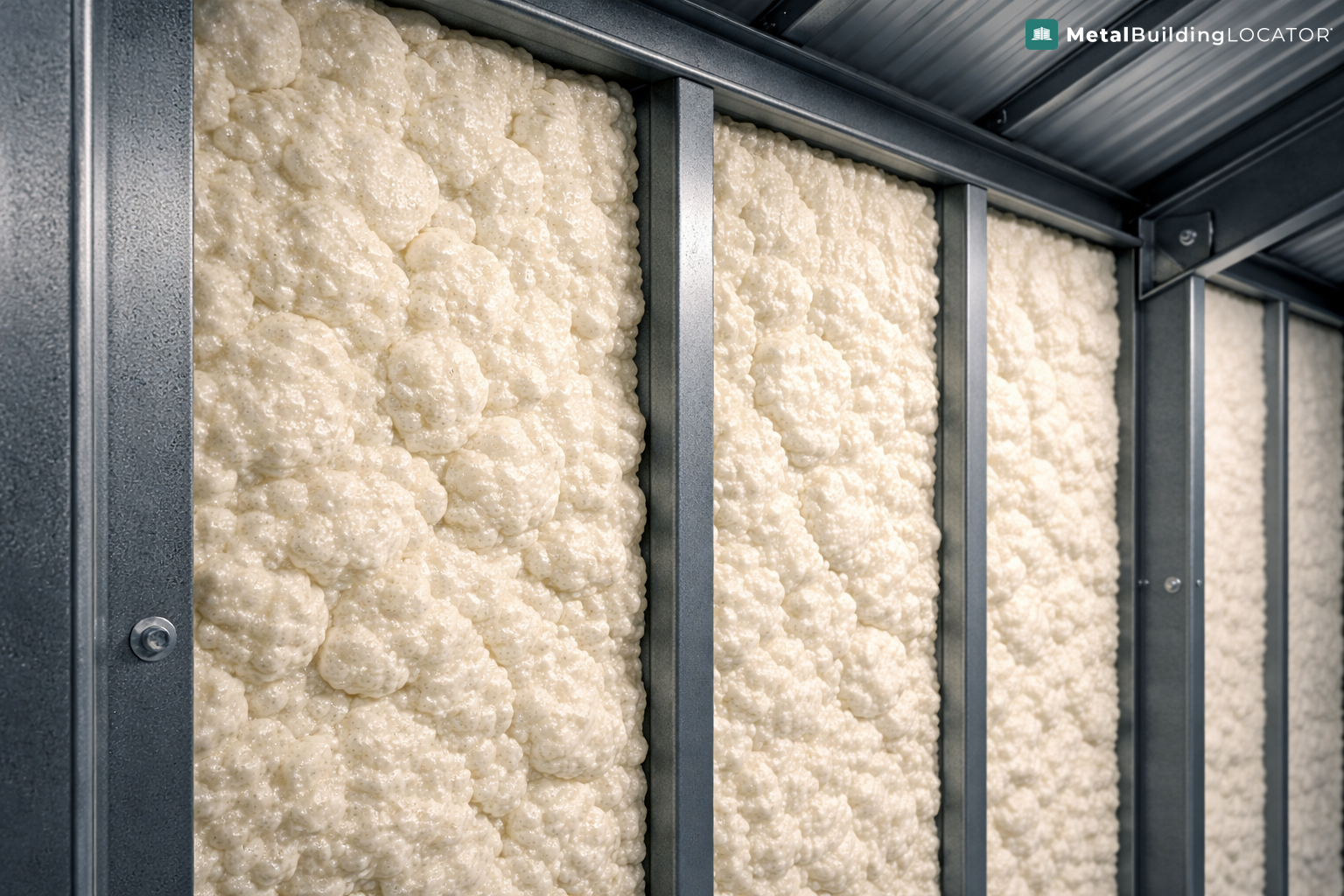

Spray Foam Insulation for Metal Buildings
Spray foam insulation delivers superior performance by sealing air gaps and adhering directly to metal panels.
It offers:
- High insulation value per inch
- Built-in air and moisture barrier
- Excellent condensation prevention
Spray foam is ideal for workshops, commercial buildings, and climate-controlled spaces.
Rigid Board Insulation
Rigid foam board insulation is often used for interior finishes or retrofit projects.
It resists moisture, maintains shape over time, and provides a clean, finished appearance. Installation requires careful cutting and fastening to ensure airtight coverage.
Radiant Barrier Insulation
Radiant barriers reflect heat rather than absorbing it, making them effective in warm climates.
They are commonly installed under metal roofing to reduce radiant heat gain and are often combined with other insulation types for best results.

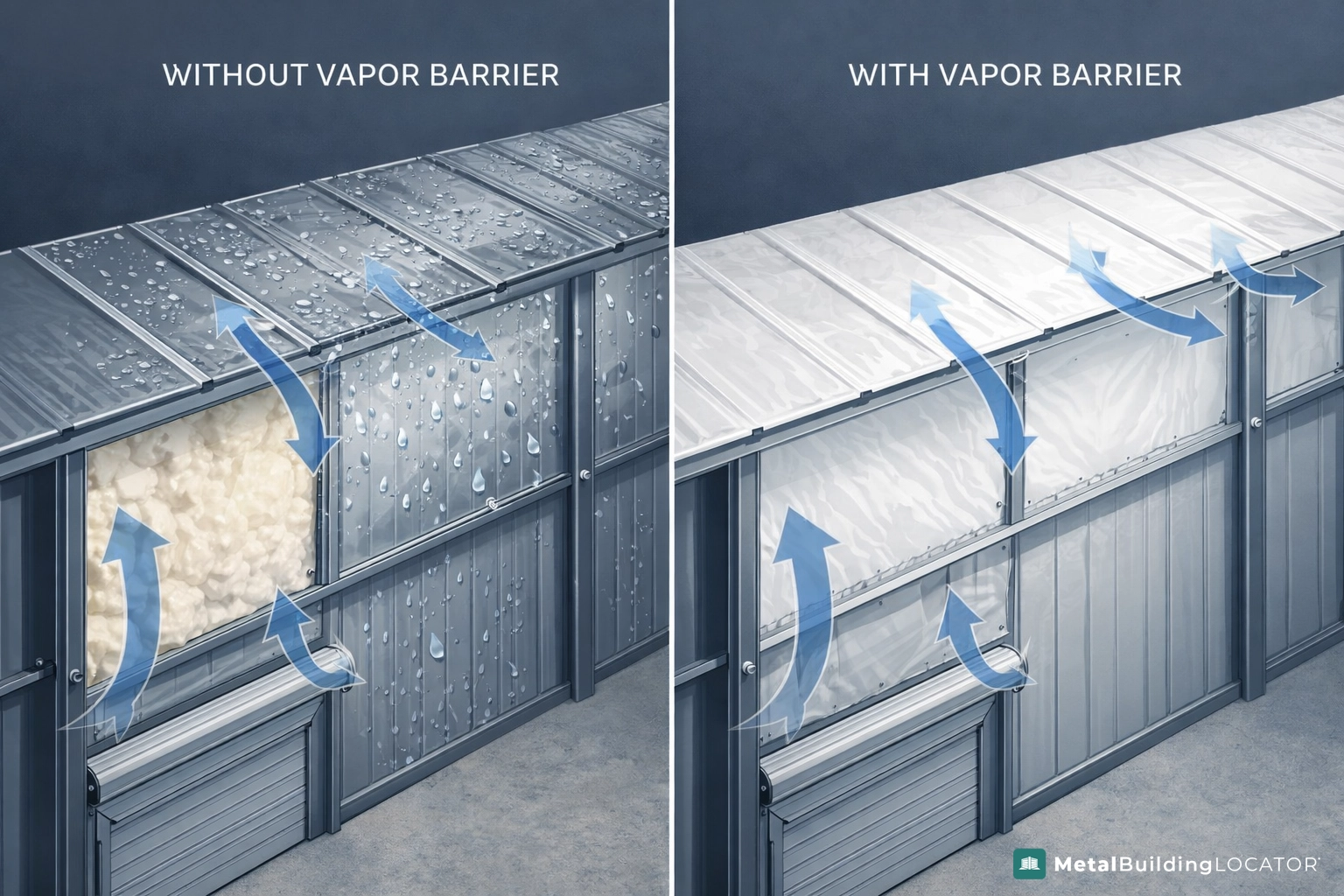

Does a Metal Building Need a Vapor Barrier?
Yes, most metal buildings need a vapor barrier to prevent condensation. When warm air meets cold metal panels, moisture forms, which can lead to rust, mold, and insulation damage if not controlled.
Proper vapor control is essential in both heated and unheated buildings.
Insulating the Roof, Walls, and Foundation
For maximum efficiency:
- Roof insulation limits heat transfer from above
- Wall insulation stabilizes interior temperatures
- Slab or foundation insulation reduces heat loss through the ground
Skipping any of these areas reduces overall insulation effectiveness.
FAQs About Metal Building Insulation
What Is the Cheapest Way to Insulate a Metal Building? Fiberglass insulation is usually the most affordable option and performs well when installed with a vapor barrier.
Can You Insulate an Existing Metal Building? Yes. Existing metal buildings can be insulated using spray foam, rigid board, or interior wall systems without removing exterior panels.
Is Spray Foam Worth It for Metal Buildings? Spray foam is worth it for buildings that are heated or cooled year-round due to its insulation performance and moisture control.
